SB Membrane Sampling Valve

The Alfa Laval SB Membrane Sampling Valve is a compact, cost-effective way to take bulk or aseptic samples from tanks and pipework in breweries (and other hygienic processes such as food and dairy) under sterile conditions. This aseptic sampling valve is suitable for highly viscous products, such as harvest yeast, and ensures minimal risk of contamination, high accuracy, exceptional repeatability and excellent reliability.

Safe and secure in-line sampling in compact format

Aseptic and sterilizable to ensure hygienic sample at low investment cost
No sample contamination risk: designed for effective sterilization in place with alcohol or steam before and after each sample
Flexible sampling methods: available in manual activation, manual with microport for hypodermic needle or pneumatic versions
Reliable – rated to 10 bar pressure
Safe sampling procedures

Versatile hygienic design: Made of a single piece of stainless steel, the valve body features smooth, crevice-free surfaces. With no welding, there is no the risk of pore formation and cracking in the welds and subsequent risk of bacterial build-up. This highly versatile hygienic valve is available in several different versions to ensure sampling reliability and safety for a broad range of applications.

Close at Hand catalogue

The hygienic equipment product catalogue "Close at hand" includes product leaflets, links to animations, brochures and lists for ordering purposes.

Find an Alfa Laval product

CAD portal

The Alfa Laval CAD portal is an essential platform for downloading detailed product information, 2D drawings and 3D product models.

Visit the CAD portal

Service

Our dedicated Global Service Network supports you with parts and expertise, wherever you are, whenever you need it. By ensuring greater uptime, availability and optimization, we help bring you peace of mind, and maximize your return on investment. We can work with you to integrate our services into an Alfa Laval Service Agreement for predictable and worry-free operations.

Learn more about our service offer Troubleshooting

Spare parts Technical support

Serial number search Certification

How can we help you? Please contact us with any queries or questions.

How the LKH Multistage centrifugal pump works

Operating principle

The valve is available with three different types of connection: tank, pipe and threaded. They operate on the same principle. Before the valve is opened, the closure should be placed on the upper hose connection. When the handle is turned to the horizontal position the sample starts to flow through the lower outlet. When the handle is turned back to the vertical position the valve shuts and the handle can be removed if required. Aseptic sampling can be taken using a special valve type with microport. If you remove the red cap, you can insert a hypodermic needle through a central channel into the membrane to take an aseptic sampling with the valve in the shut position. After sampling, flush the valve with water or alcohol. The valve can be sterilized using alcohol or steam.

As an option, Alfa Laval offers the Alfa Laval Steam Generator, which enables you to steam-sterilize where there is no permanent steam supply on hand.

Function and cleaning

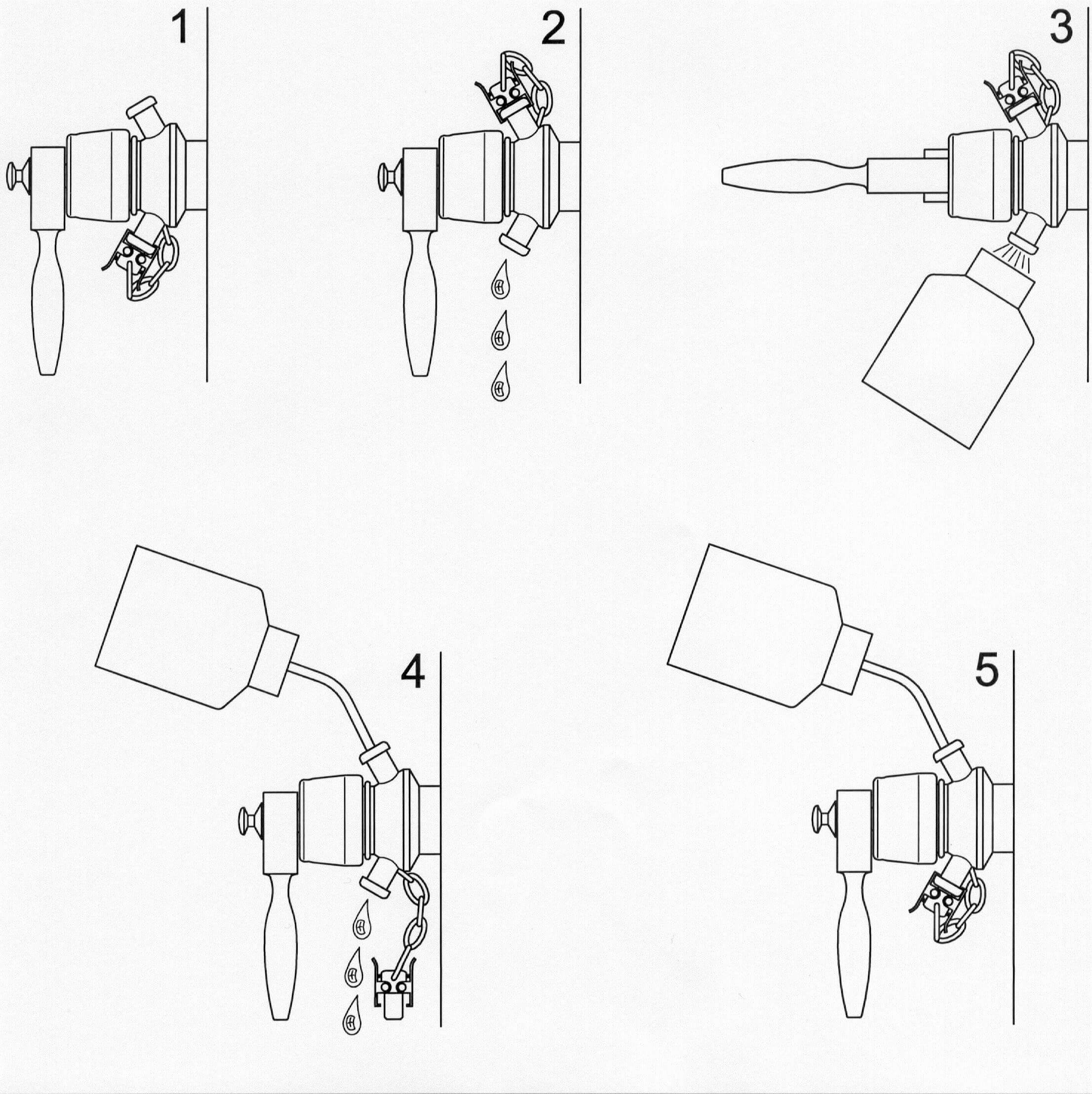

1 Alcohol sealed valve

2 Alcohol is drained and the valve can be steam sterilized

3 Sample is taken

4 Valve is flushed with water/alcohol

5 Valve is sealed with alcohol

Learn more

You can read more about the efficiency, practicality and technical details of the SB Membrane Sampling Valve.

Technology

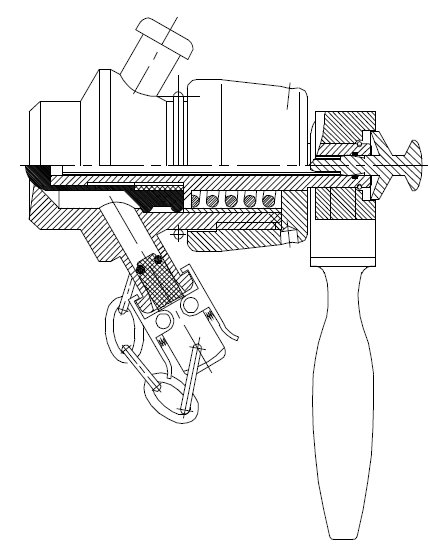

The valve consists of a valve body, actuator and membrane seal placed on the stem of the actuator, which works as a stretchable plug. The valve is sterilized in place with alcohol or steam. The membrane forms a seal directly against the product to ensure representative sampling, and give repeatable results safe from secondary contamination.

The valve is available in three different actuator designs:

Manual - For manual activation

Manual + Micro Port - For manual activation or sampling using a hypodermic needle to penetrate the membrane for sample taking.

Manual + Pneumatic - For manual or pneumatic activation when the valve is connected to pipes for automatic sampling. The valve is then supplied with pipe outlet connections.

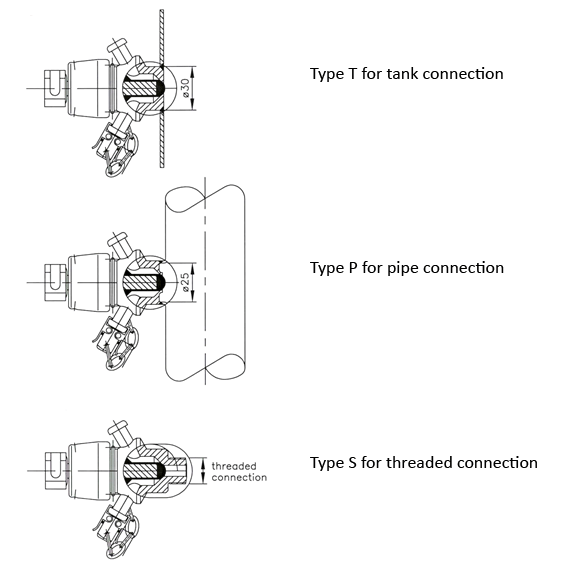

Type T for Tank connection

The valve is available in three different mounting designs:

Part of a broad valve range

Alfa Laval offers a comprehensive range of valves intended for hygienic applications in various industries including dairy, food, beverage,home care, personal care, biotechnology and pharmaceuticals:

Explore the full range here
